Multiple Operating Systems supported
AidLux Fusion OS (Android + Linux) Standalone Android or Linux
Single-SoC Multi-Purpose Mainboard AGC6490
AGC649012TOPS8-core CPUAndroid+Linux Dual OS
Product Advantages
Single-SoC Multi-Purpose Mainboard AGC6490 is a high-performance product developed by APLUX based on the Qualcomm QCM/QCS 6490 SoC, specifically designed for robots. It features an 8-core CPU, boast of 12 TOPS AI performance by dedicated NPU, powerful AI capabilities, includes various peripheral connectors like USB*8, UART*8, and fully meets the robot multi-sensor sensing and control module access requirements, and equipped with industrial connectors, suitable for outdoor scenarios. It offers flexible operating system choices, with the standard configuration being Android+Linux dual-system integration for parallel operation, while also capable of independently running Android or Linux operating systems. It can be applied to various high-performance and high-computing power robot scenarios, including indoor and outdoor delivery robots, service robots, cleaning robots, smart lawnmowers, and more.
Excellent Cost-Effectiveness
Strong Comprehensive Performance offer a wide range of computing power Reduction in Hardware and Development costs
Simplified AI Development
Automatic Model Optimization One-step AI Acceleration Python and C++ Development API
The fusion OS enriches the applications for wide scenarios
Consumer market friendly The Android enables infinite interactive possibilities The Linux ensures higher AI performance and reliable data security
Specifications
SOC
Qualcomm QCM/QCS 6490
CPU
1xCortex A78 2.7GHz 3xCortex A78 2.4GHz 4xCortex A55 1.9GHz
GPU
Adreno 643 812MHz
AI Computing Power
12TOPS INT8
Memory and Storage
8G LPDDR4X, 128G uMCP, Supports TF Card
Core Board Size
80* 80 mm
Overall Size
184 * 114 mm
Work Environment
Temperature: -30°C-75°C Humidity: 5%-95%
Operating System
AidLux Fusion OS (Android 13 + Ubuntu 20.04)
Ubuntu 20.04, Android 13
Wireless Networks
WIFI6E (WLAN 802.11ax)
Cellular 4G/5G
Bluetooth BT5.2
Wired Networks
1000Mbps Ethernet HRS RJ45*2
Video
HDMI*1, LVDS*1 DP*1 (over usb Type-C)
Camera
MIPI CSI 4-lane*4
Audio
output 3.5mm*1,output speaker*2 input mic*2
USB
USB3.0 TypeA *4
USB3.0 HRS RJ45*4
USB TypeC*1
Peripheral Interface
uart 3.3V*8,rs232*1(over uart)
rs485*1(over uart),CAN*2,GPIO*12
mini PCIe
Power
Input: 12v 2pin
Output: 12v-2a*1 5v-2a*1 3.3v-2a*1

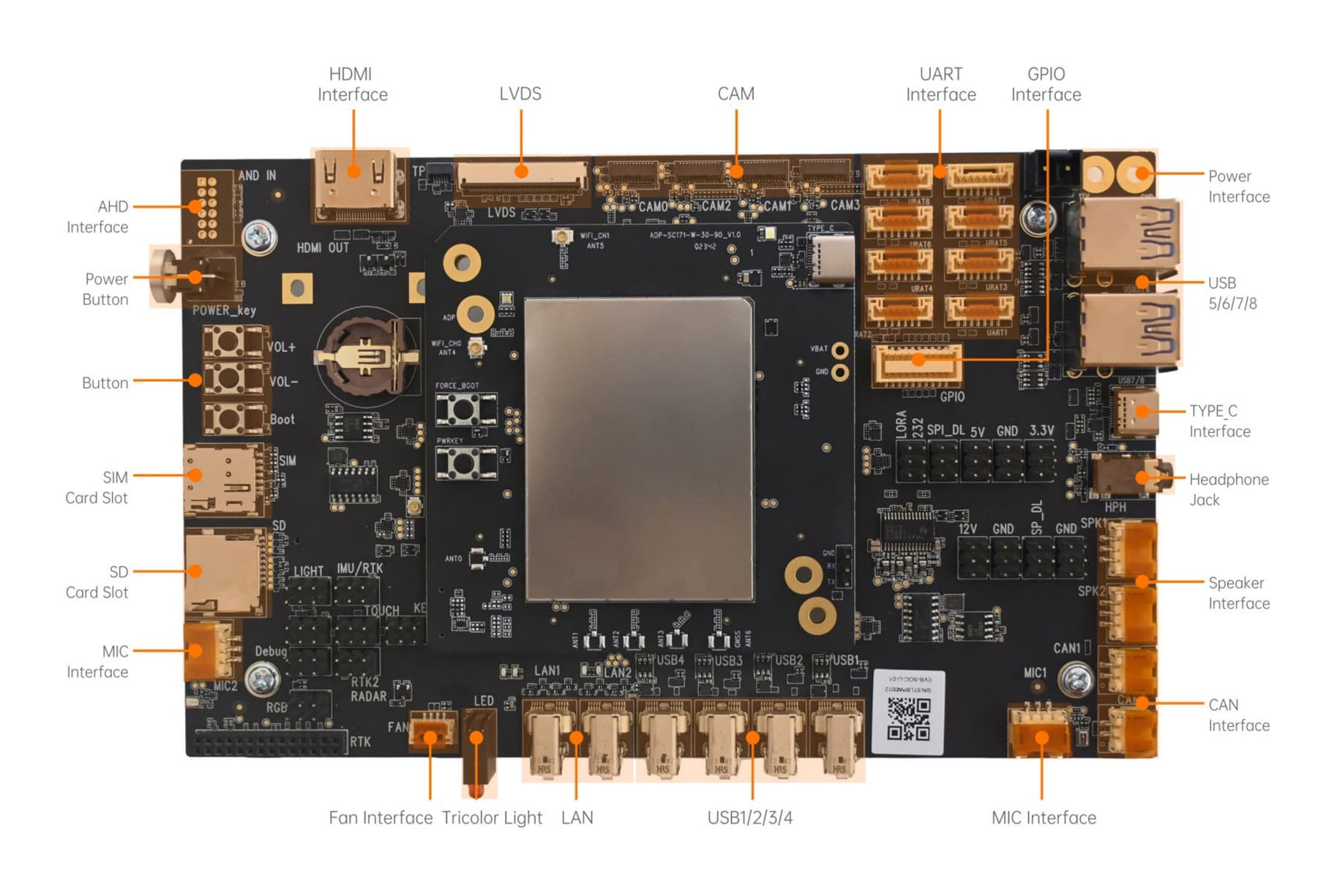

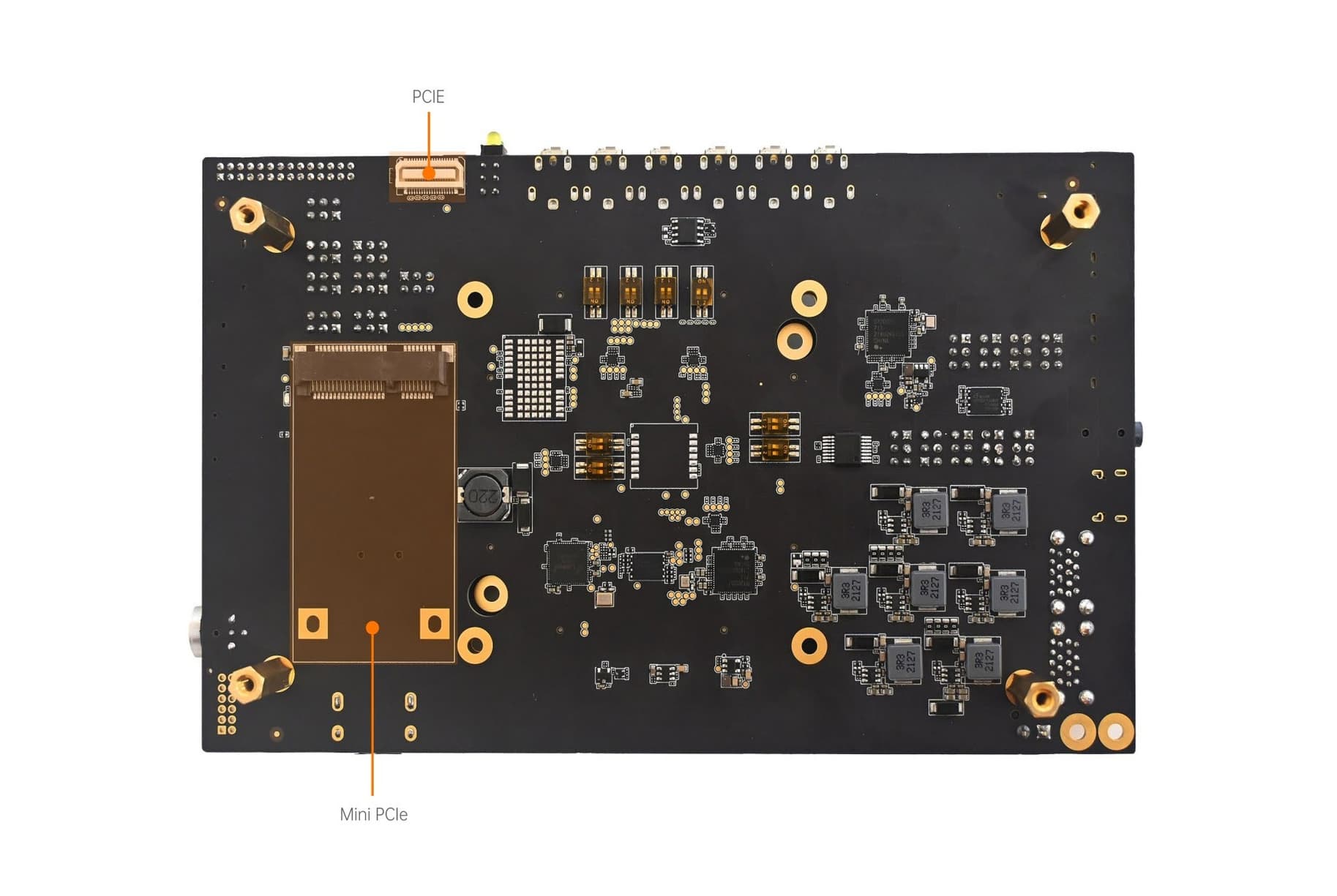

Interface Description
